We are a trusted manufacturer of SS PTFE lined pipes based in Africa, providing top-notch solutions for corrosive and high-temperature usage. Our pipes boast double protection with stainless steel grades SS 304 and SS 316, lined with best-quality PTFE to provide superior resistance to chemicals and harsh temperatures. They are designed to be durable and sanitary and have application in pharmaceutical and food-grade processing industries where safety and purity are a priority. With a focus on quality and innovation-driven strong emphasis, our PTFE lined pipes provide long-term performance with reduced maintenance costs and enhanced operational efficiency in most industrial applications.

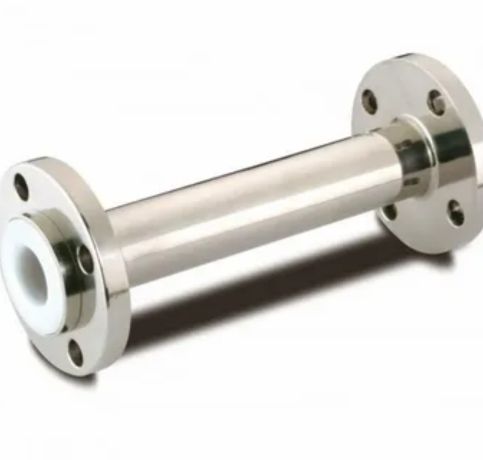

SS PTFE lined pipe is an internally lined stainless steel (SS) pipe with a highly non-reactive and chemically resistant fluoropolymer polytetrafluoroethylene (PTFE). The union combines the strength and toughness of stainless steel with corrosion resistance and non-stick character of PTFE. They have wide application in chemical processing, pharmaceutical, and food processing industries where aggressive chemicals or high purity are involved. The PTFE lining provides protection against chemical attack on metal, reduces maintenance, and ensures longer life. SS PTFE lined pipes are ideal for safe and efficient transportation of corrosive, toxic, or high-purity fluids.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options
PFA – ASTM D 3307
FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322
PP – ASTM D 4101
HDPE
Peter PTFE Lined Pipe is a leading supplier of SS PTFE Lined Pipes in Africa, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| SIZE | Min. Avail Length with flange | Max. Length Avail. | Flange Stopper Thik “J” | Wgt per mtr length | Wgt + ~ 1 mtr | |
| NB | INCH | (mm) | (mm) | (mm) | (Kg) | (Kg) |
| 25 | 1″ | 100 | 6000 | 10 | 5.5 | 3.3 |
| 40 | 1.5″ | 100 | 6000 | 10 | 8.5 | 5.5 |
| 50 | 2″ | 100 | 6000 | 10 | 11.0 | 6.5 |
| 80 | 3″ | 110 | 6000 | 10 | 20.0 | 13.0 |
| 100 | 4″ | 110 | 6000 | 10 | 30.0 | 18.5 |
| 150 | 6″ | 125 | 6000 | 10 | 48.7 | 33.8 |
| 200 | 8″ | 125 | 6000 | 12 | 75.5 | 52.0 |
| 250 | 10″ | 140 | 3000 | 12 | 98.5 | 62.5 |
| 300 | 12″ | 150 | 3000 | 12 | 120.0 | 82.0 |
| 350 | 14″ | 200 | 3000 | 12 | 157.0 | 84.0 |
| 400 | 16″ | 200 | 1500 | 12 | 192.0 | 95.6 |
| 450 | 18″ | 210 | 500 | 15 | 214.0 | 108.0 |
| 600 | 24″ | 240 | 500 | 15 | 335.0 | 145.0 |
PTFE lining resists a wide range of aggressive chemicals, acids, and solvents.
PTFE prevents material buildup, improving flow efficiency and reducing maintenance
Ideal for both high and low temperature applications, from cryogenic to elevated heat.
Reduced repair, replacement, and downtime costs over the system’s lifetime.
Yes, we offer SS PTFE lined pipes in custom sizes to meet specific project requirements, including varying diameters, lengths, and flange types, ensuring compatibility with your system design.
SS PTFE Lined Pipes are highly durable, with a long service life due to their resistance to corrosion, wear, and chemical attack, even in challenging environments.
SS PTFE lined pipes typically handle temperatures from -60°C to +200°C and pressures up to 150 PSI, depending on design and specifications, offering reliable performance in demanding industrial environments.
Yes, all SS PFA lined pipes are provided with vent holes for easy leak detection. We follow stringent quality control protocols to ensure defect-free products.
SS PTFE Lined Pipes are more resistant to a wider range of chemicals and higher temperatures compared to other lined pipes, like rubber-lined or plastic-lined pipes.
We are the leading Manufacturer and Supplier of Peter PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Africa.
